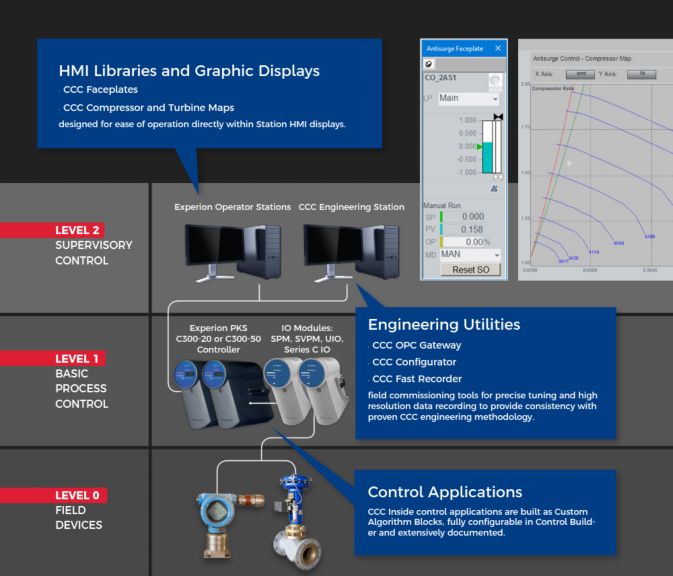

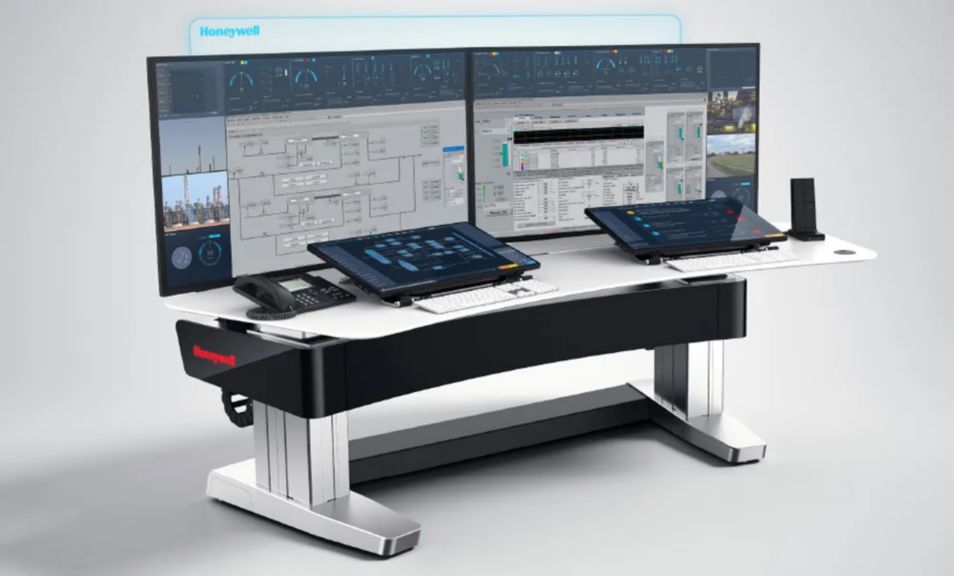

CCC applications have been created based on CABs within Experion software. Graphics is a set of objects made with native Experion HMI tools. It allows CCC to deploy the solution at any compatible Experion PKS system, and show the turbomachinery screens on the Orion console.

To make CCC solutions easier applied for industrial operations,

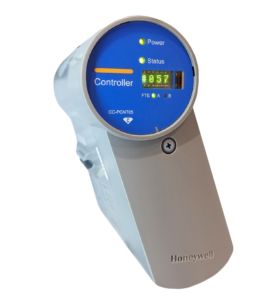

we developed CCC Inside for C300 turbomachinery control platform. Antisurge, Performance, Master, Loadsharing, Speed Control and other TMC applications for centrifugal and axial compressors with steam turbines, expander or electric motor drive – all within the C300 controller.

CCC Engineering Utilities are designed to overcome DCS limitations with high resolution data and to provide our global project and field service teams with a standard interface for configuration and tuning.

In the turbomachinery control field, where interactions between control loops occur in a matter of milliseconds, the requirement to design and test the overall solution as an integrated system is paramount. Compressors, turbines, motor drives and auxiliary equipment are tested together with the rest of Process Control System to ensure smooth operation in all operating modes.

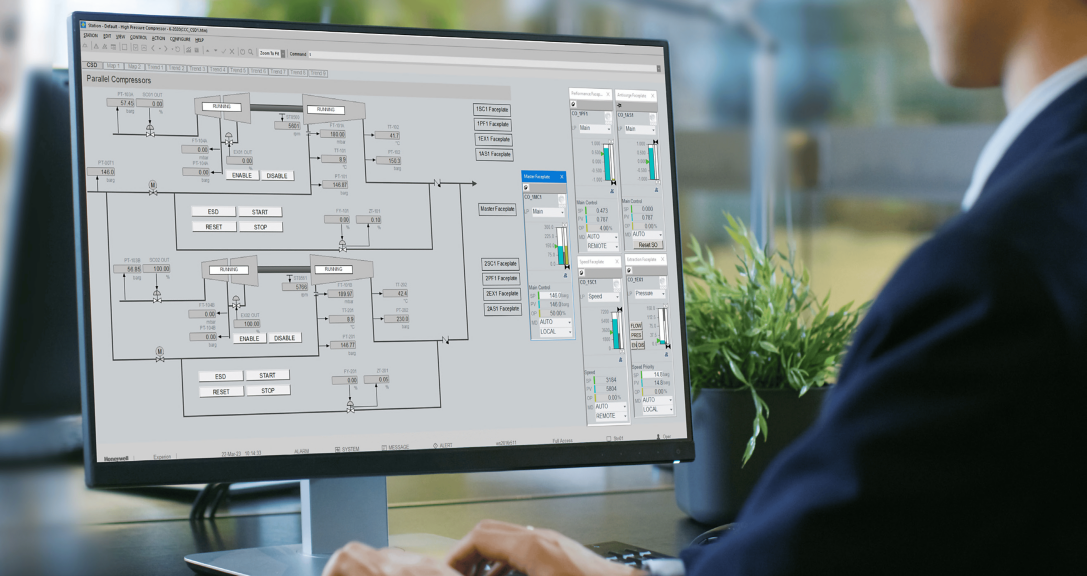

Access to Operator faceplates and Compressor Maps is important to understand the current compressor operation and behavior. Integrating specific Turbomachinery screens with the rest of Operator graphics allows understanding the current situation easier and faster, providing insight into the long-term compressor performance and saving precious time in case of a difficult situation.
